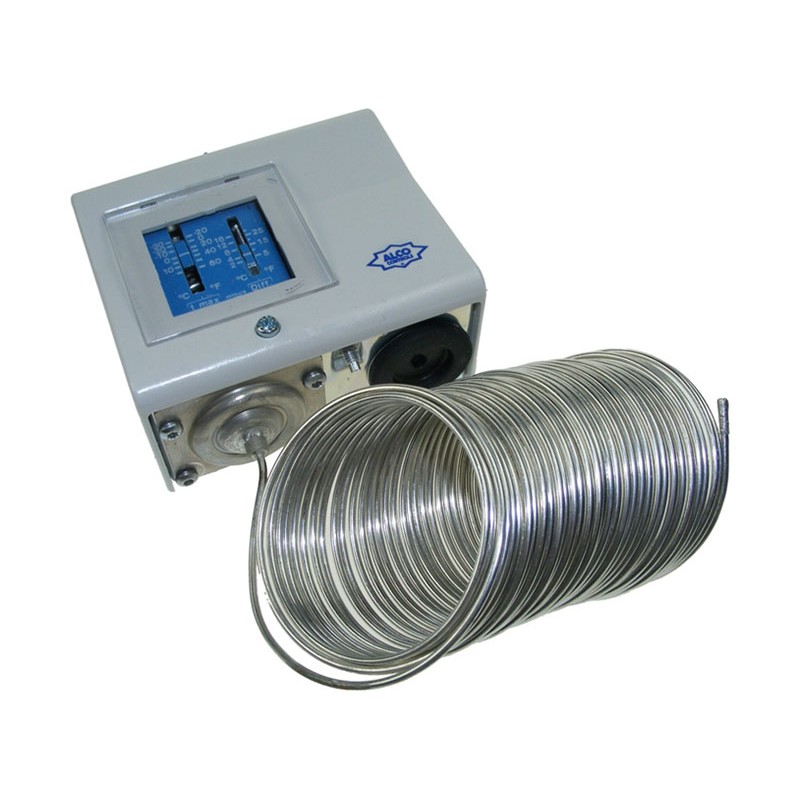

The TS-FS frost protection thermostats provide a switched output based on the average temperature detected along a six metre capillary sensor. The unit is fixed across a duct using capillary clips, downstream of the frost coil and is used to prevent the icing up of filters, fans and coils.
Control Range: | -30°C to +15°C |
Differential: | 1.5…16°C |
Switch Rating: | 24(10)A @ 230Vac 3A @ 24Vdc |
Reset: | Auto |
Capillary: | 6m x 2mm dia copper |
Sensor Type: | Vapour charge |
Ambient Range: | Housing: 0°C to 50°C Capillary: -50…+70°C |
Protection: | IP44 |
